Bias illustrated with target analogy

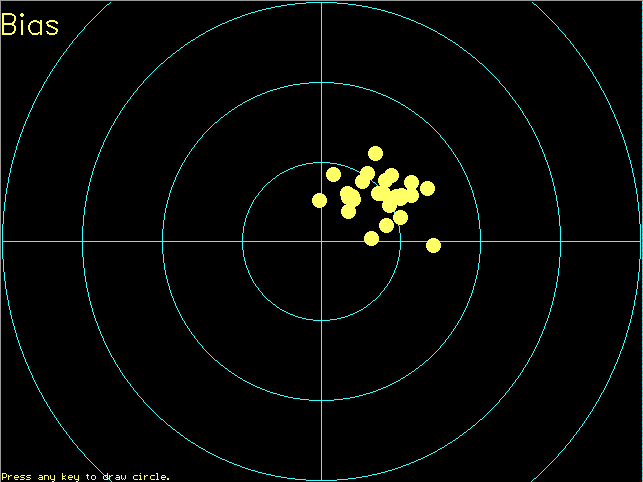

A biased estimator.  The points are not centered on the target.

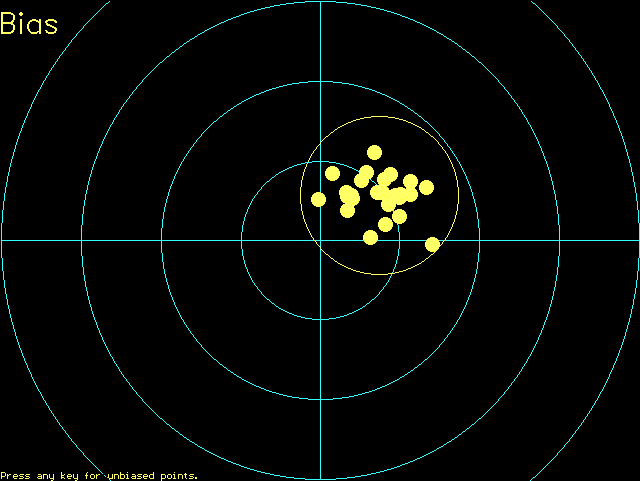

Adding a circle, equal in size to the innermost target circle and centered on the mean of the yellow points, to show how little they vary.

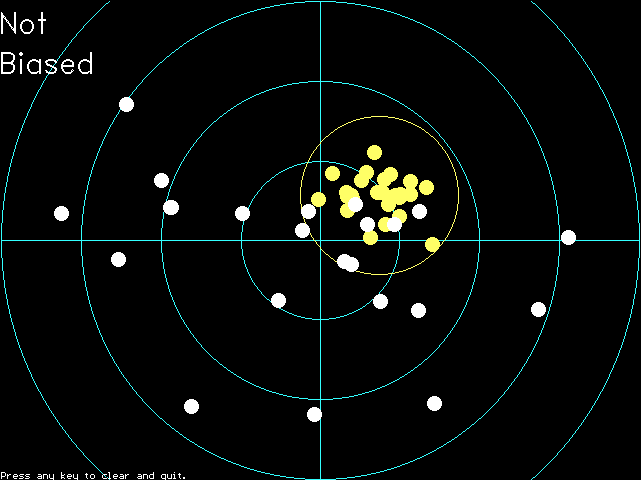

Adding estimates from an unbiased estimator with a larger variance. The white points are centered on the target, but it takes a much bigger circle to encompass them. Which is better, the unbiased white or the biased yellow?  It depends on the scores you get for hits in different circles.
